PH Value Temperature Transmitter Detection Sensor Module,RS485/4-20mA/0-10V/0-5V Output PH Temperature Transmitter PH Sensor
Temperature range: -20 ° C to + 80 ° C
Temperaure accuracy ± 0.5 ° C
Measuring PH range: 0.0-14.0PH
Measuring PH precision:+-0.01
Power supply: DC 12V-24V
Signal output: DC 0 ~ 5V or 0 ~ 10V or 4-20mA or ModbusRTU485
Load Resistance: Voltage output R load >= 10KOHM
Currrent Output: R load <= (Uvcc-3) /0.02ohm
Power consumption: <1w
Storage conditions: Temperature range 10-50 ° C (-20- + 80 ° C peak);
Humidity range 20-60% RH
Operating environment : -20 ° C to + 80 ° C
Temperaure accuracy ± 0.5 ° C
Measuring PH range: 0.0-14.0PH
Measuring PH precision:+-0.01
Power supply: DC 12V-24V
Signal output: DC 0 ~ 5V or 0 ~ 10V or 4-20mA or ModbusRTU485
Load Resistance: Voltage output R load >= 10KOHM
Currrent Output: R load <= (Uvcc-3) /0.02ohm
Power consumption: <1w
Storage conditions: Temperature range 10-50 ° C (-20- + 80 ° C peak);
Humidity range 20-60% RH
Operating environment : -20 ° C to + 80 ° C

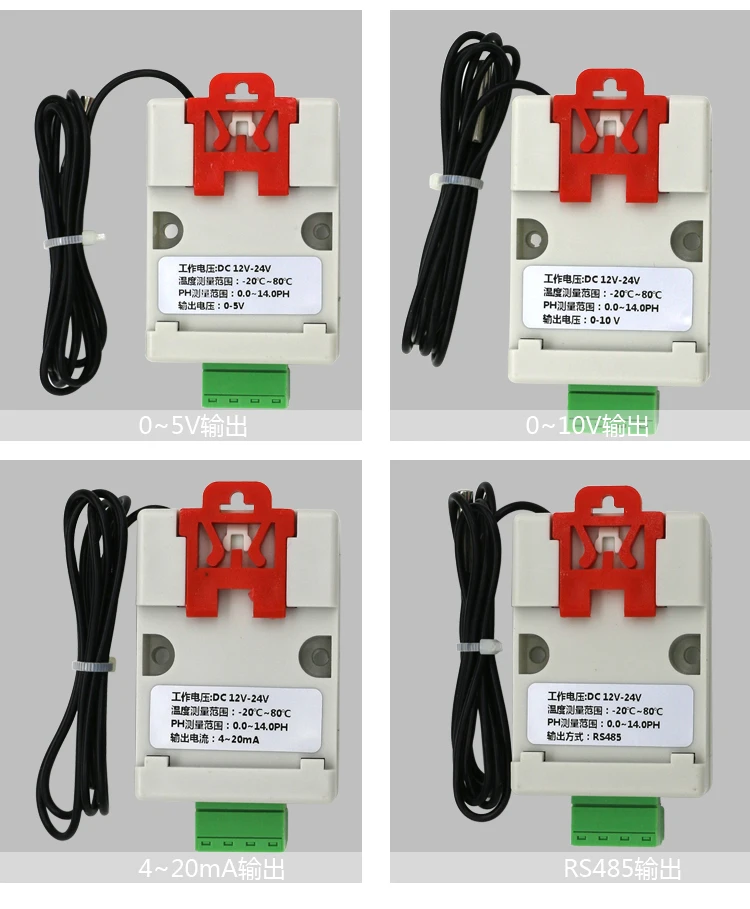

We have following output .pls kindly let us know your choose ,when you place the order ,thank you

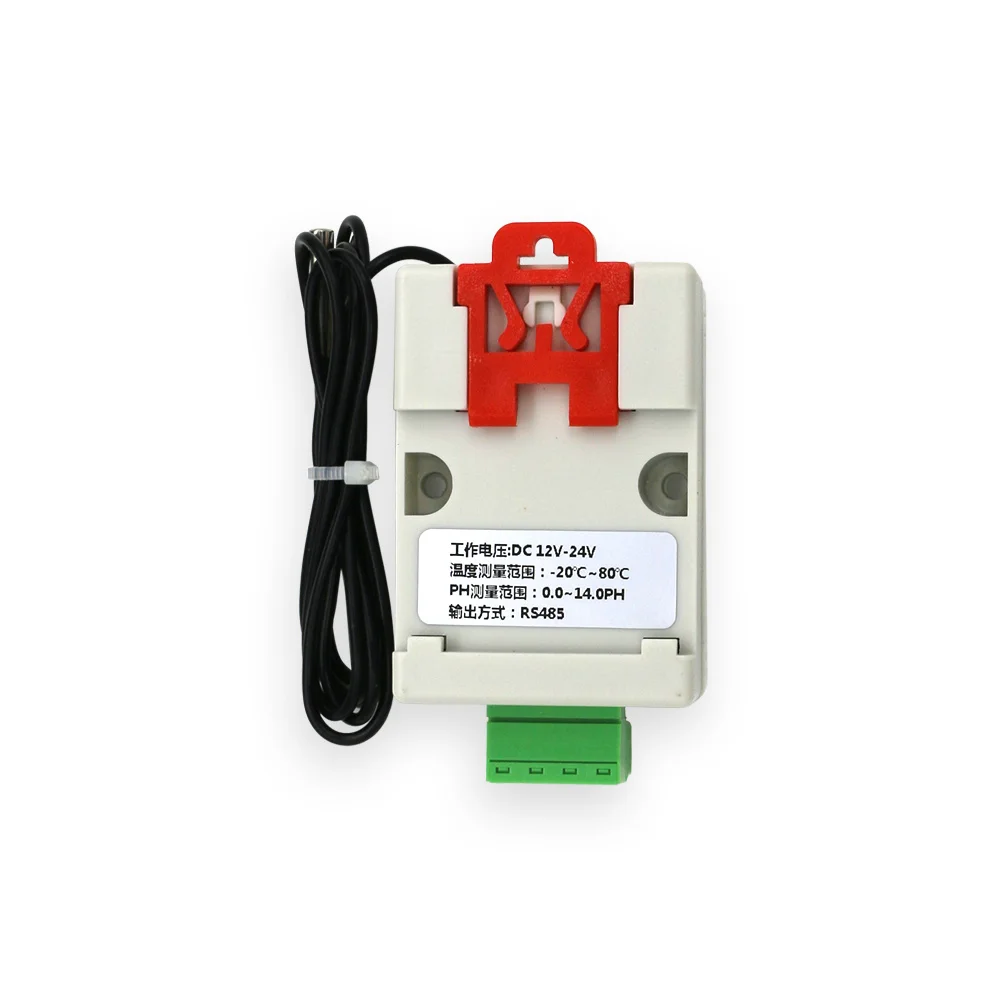

RS485 output

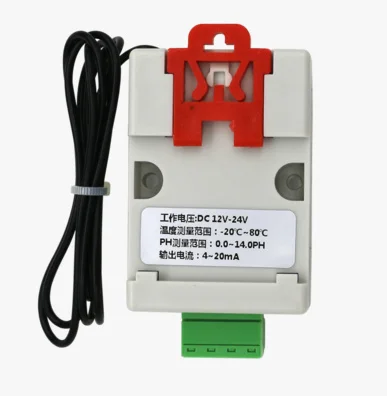

4-20mA output

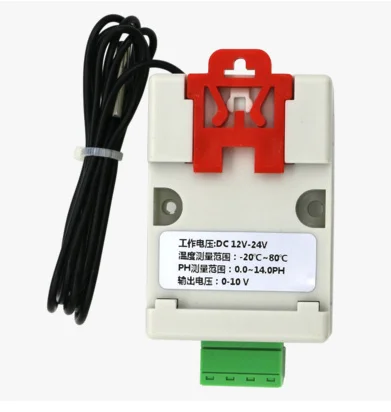

0-10V output

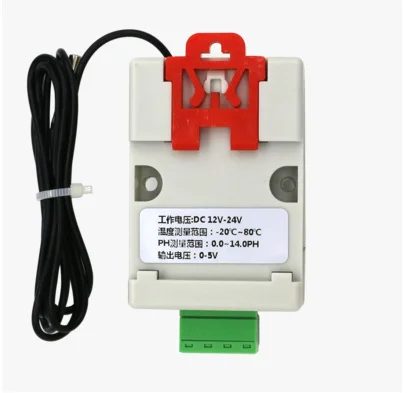

0-5V output
