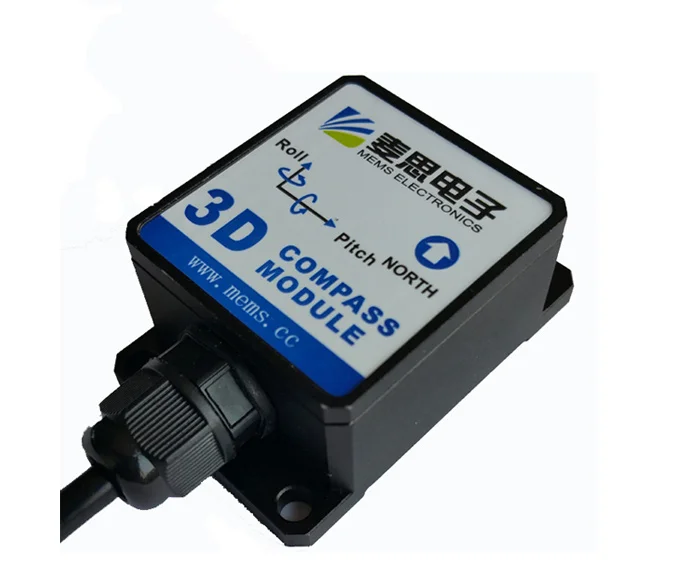

RS232/RS485/TTL Compass Module SEC345 Dip Angle Compensating 3D Electronic Compass Digital Compass Magnetic Sensor
1、Precision: 1 °
2、high dip Angle measuring range:±40°
3、wide temperature scope: -40℃~+85℃
4、low working current: 40mA
5、hard magnetic, soft magnetic and Angle compensation

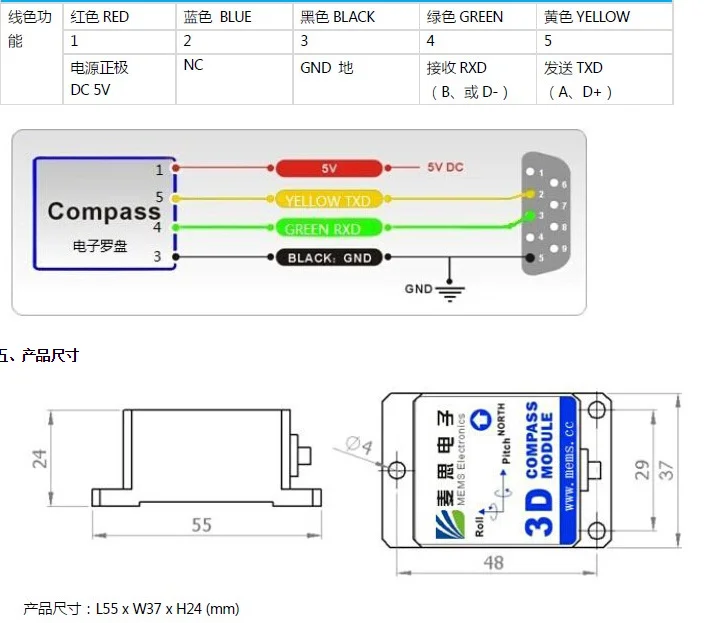

6、 Standard RS232/RS485/TTL output interface(Choose)
2、high dip Angle measuring range:±40°
3、wide temperature scope: -40℃~+85℃
4、low working current: 40mA
5、hard magnetic, soft magnetic and Angle compensation
6、 Standard RS232/RS485/TTL output interface(Choose)
Application field
1, the satellite tracking.
2, drilling equipment control measure
3, optical rangefinder
4, shock * * soldier equipment
5, underwater robot navigation
6, Marine instrument
7, robot control
8, unmanned aerial vehicles
